Your Position :
Home > Products > Agriculture Drone
(T3000)

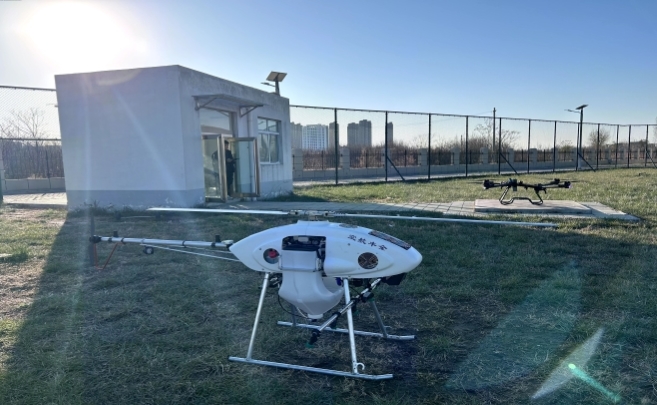

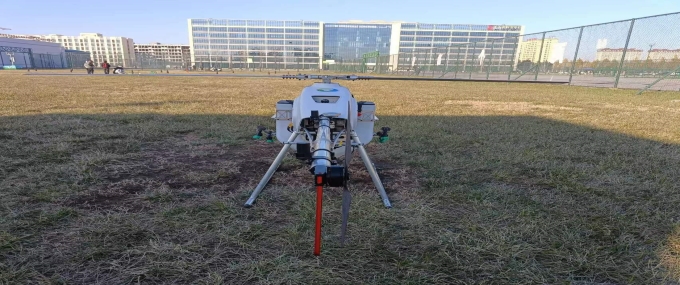

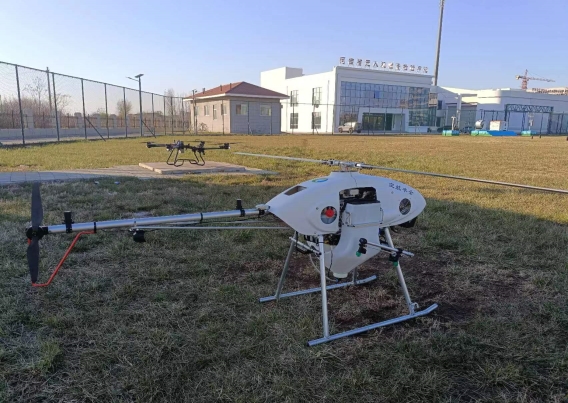

T3000 Spraying Helicopter

T3000 spraying helicopter has the advantages of long endurance, high efficiency and easy maintenance ,etc. It is a powerful tool for your plant protection work .
Send Email
Chat Now
Spraying Helicopter
Spraying Helicopter(T3000) introduction
T3000 spraying helicopter has the advantages of long endurance, high efficiency and easy maintenance ,etc. It is a powerful tool for your plant protection work .
It is easy to operate because of many advanced functions with it, such as autonomous flight, break point return , obstacle avoidance , etc.
The Main Parameter
Main Parameter
Item Index
Dimensions（L*W*H）
2.4*1.07*0.68m
Net weight 40kg
Max Take-off weight 75kg
Payload 32kg
Fuel Tank Volume 2.5L
The Diameter Of Main Propeller 268cm
The Material Of Main Propeller Carbon Fiber
Spraying rod length
 1.4m
Maximum work efficiency 266 ha/day
The Temperature For Application -10℃-45℃
Durable Time ≥50 min
Quick removal of the spindle structure, strong, simple and reliable,so pilots can start after simple training, greatly reduce the after-sales pressure, improve the work efficiency of the aircraft.
The domestic plant protection industry is the first patent aluminum alloy blade to make the use cost greatly reduced.The structure is rigid,will not be damaged by touching weeds and small branches,more solid and durable,
Independent research and development of high-power water-cooled unmanned helicopter special engine.So we can offer spare parts for our partner on time.
The tail adopts a fixed range speed change module for easy use and maintenance. This is a drone based on plant protection applications and considering industrial applications.
