(50L)

QF TP-50

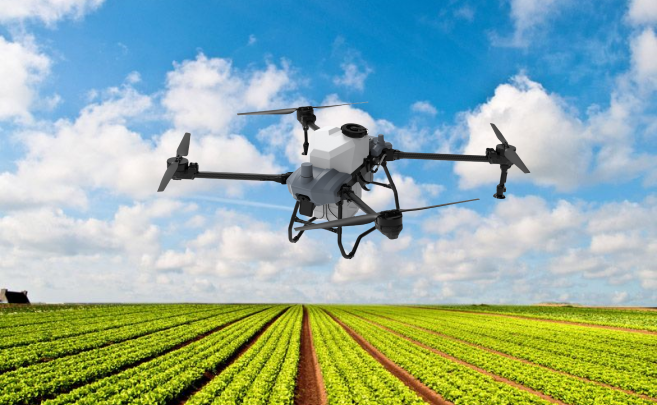

QF TP-50 our latest electric drone model. It has the characteristics of long endurance, high efficiency, high-precision, easy operation, convenient maintenance, multi-functional, high cost performance,etc. It has won the favor of all customers.

360° omnidirectional radar, obstacle avoidance, and comprehensive improvement in work safety

High precision, automatic calibration, significantly improved broadcasting accuracy, saving losses by 75%

Wireless integrated grouped flight control

Send Email

Chat Now

Share With:

characteristic:

Z-shaped rack: The Z-shaped folding design can reduce storage volume by 15%, making it convenient for transportation and transfer. The front low and back high design reduces wind resistance and can increase by 10%.

Pressure buckle locking structure: easy to operate, double protection, firm and reliable, with higher safety performance than traditional structures increase by 80%.

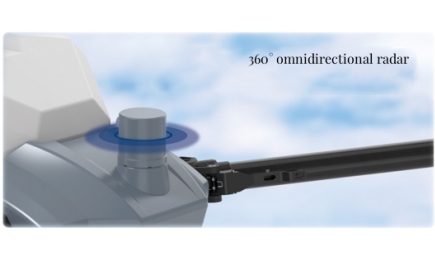

360° omnidirectional radar: omnidirectional obstacle avoidance, comprehensive perception, and comprehensive improvement of work safety.

Grouped modular design: Flight control module fast, RTK module, receiver module separate design, plug and play, flexible configuration.

characteristic:

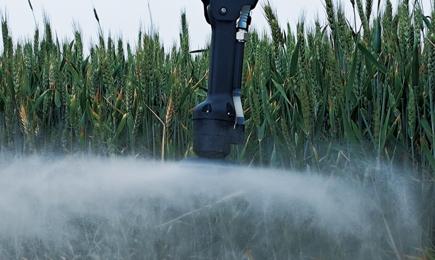

The sandwich water-cooled centrifugal nozzle effectively reduces the electric temperature of the motor and increases its lifespan by 70%. The minimum particle size range can reach 30 microns, bringing a brand new spraying effect.

High precision weighing module: automatic calibration, real-time weighing, significantly improved broadcasting accuracy, saving losses by 75%.

Equipped with double-sided large flow impeller pump: abundant flow and efficient operation, capable of achieving a super large flow rate of 16 liters/minute. Combined with ultrasonic flow meter sensor and drug separation detection, the performance is more stable and the accuracy is more accurate.

Intelligent remote control: large field of view, high brightness, easy to operate, equipped with a brand new Qualcomm processor, Android embedded system, advanced SDR technology, and super protocol stack.

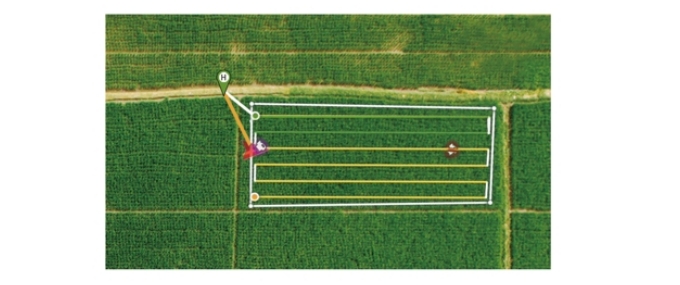

Independently plan the optimal route for each operation, cooperate with a continuous liquid level gauge, grasp the remaining amount of medicine in real time, predict the changing point of medicine, and achieve the optimal matching of medicine and electricity.

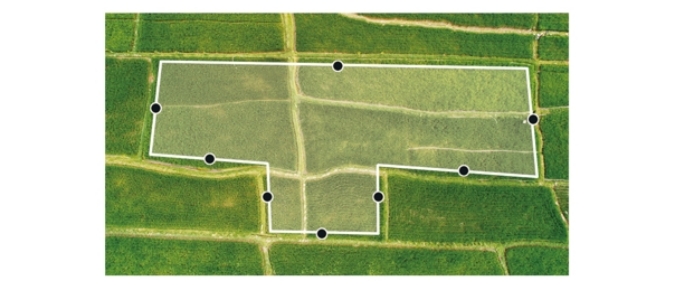

Fully autonomous flight, providing arbitrary polygonal route planning for irregular terrain, fully autonomous operation, and improving operational efficiency.

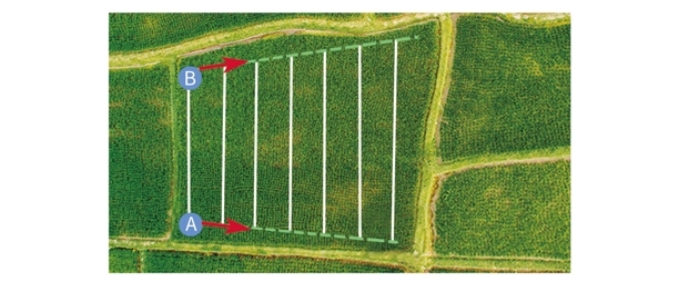

By adjusting the angle of point AB during operation, changing the aircraft route, and adapting to more complex plots of land.

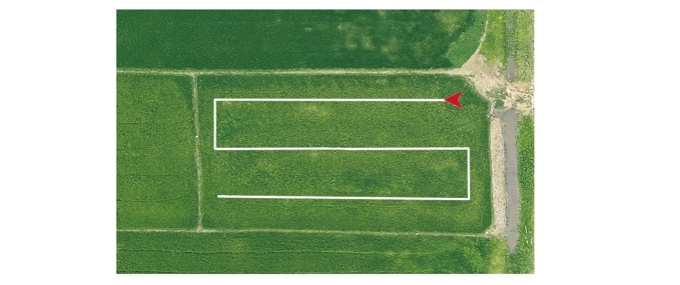

After selecting the sweeping mode, the number of circles for sweeping flight operations can be set, and the sweeping route can also be retracted as a whole or unilaterally. Parameters such as flight speed and spray amplitude can also be set, and all flight parameters can be adjusted in the same way as regular route operations.

Flight Altitude:	20m
Dimension:	2919mmx3080mmx872mm
Tank Volume：	50L
Spray Width:	8-20m
Flight Time：	28mins
Flight speed:	1-12m/s
Spray Flow:	12-24L/mins
Battery Capacity:	18S 30000mah
Spraying Efficiency:	21 ha/hour
