(32L)

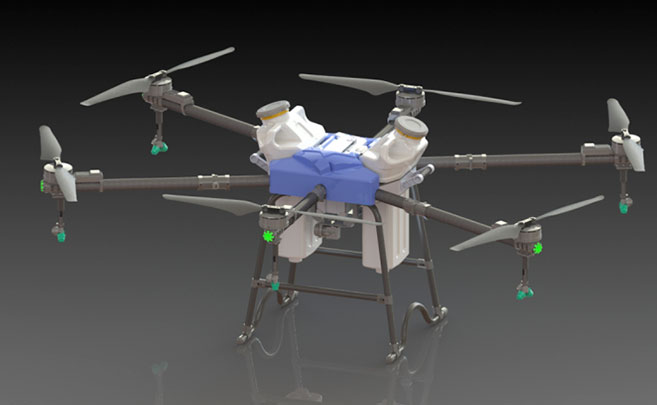

QFTP-32

QFTP-32 our latest electric drone model. It has the characteristics of long endurance, high efficiency, high-precision, easy operation, convenient maintenance, multi-functional, high cost performance,etc. It has won the favor of all customers.
4 core CPU with excellent performance, so the QFTP-32 drone has a strong "core".
Triple redundant IMU, double redundant barometer, in case single hardware break, the drone can still work.
QFTP-32(32L) introduction
QFTP-32 our latest electric drone model. It has the characteristics of long endurance, high efficiency, high-precision, easy operation, convenient maintenance, multi-functional, high cost performance,etc. It has won the favor of all customers.
The Main Parameter
The loading weight: 78KG
Dimension: 2065mmx1200mmx890mm

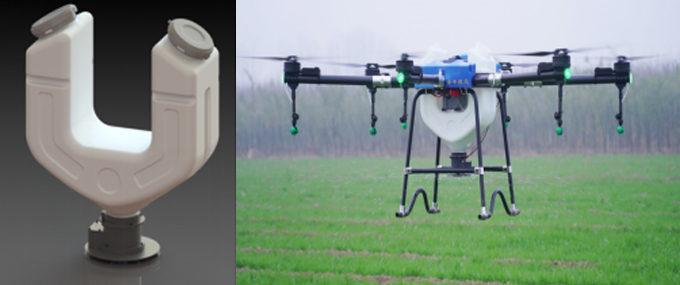

Tank Volume: 32L
Spray Width: 6-9m
Spraying efficiency: 40acres/hour (max)
Wheelbase: 2212mm
Endurance Time: 20min
Spray Height: 1-3m
Spray flow: 4-8L/min

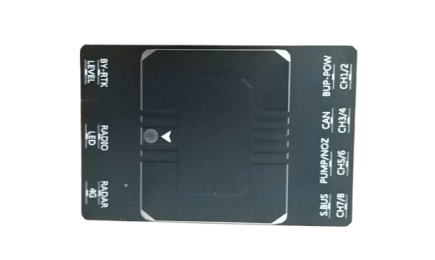

Updated flight control system , which makes the drone performance excellent:
4 core CPU with excellent performance, so the QFTP-32 drone has a strong "core".
Triple redundant IMU, double redundant barometer, in case single hardware break, the drone can still work.
Dual shock absorber structure with better seismic resistance, which makes the drone cope with complex vibration environment, even if the frame ages, it will still work stably and reduce the maintenance cost.
The drone is equipped with auto obstacle avoidance radar which assures flight safety:
The QFTP-32 drone is equipped with millimeter wave radar that has high sensitivity and long detection distance , it can identify obstacles beyond 20 meters, which assure the safe and reliable flight.
Also we equip the drone with FPV camera , you can see the situation around it clearly,that also assures flight safety.

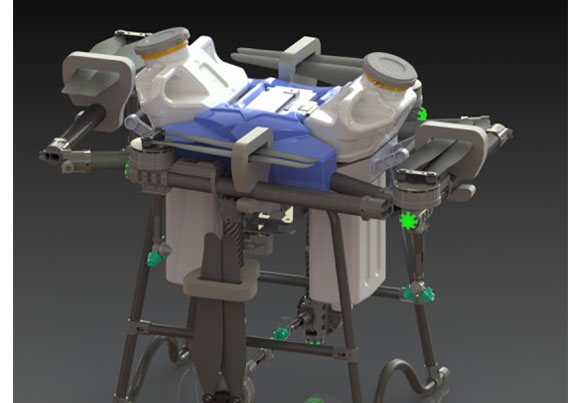

The drone body is made of composite material specially for aviation(carbon fibre and aluminium alloy ), which makes the drone much lighter but much stronger and more durable.

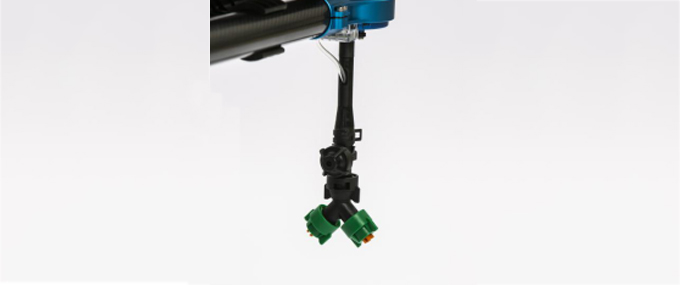

Flexible spraying system, it can reduce vibration and prolong the life of spraying system .We can also equip different nozzles for different crops and applications.
It can be equipped with granula spraying system easily, which can be used for spraying seeds, granular fertilizer, etc.

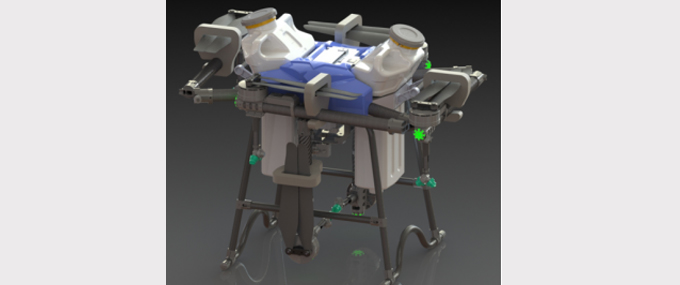

Foldable design, the drone is easy to transport.

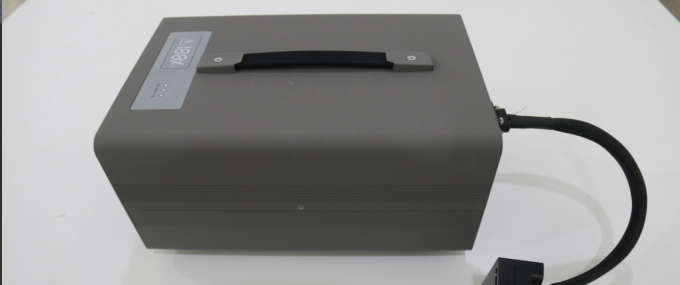

Smart charger with communication function, the voltage level is 180V-240V,which can match with the voltage level of most countries in the world. It can charge the battery quickly.

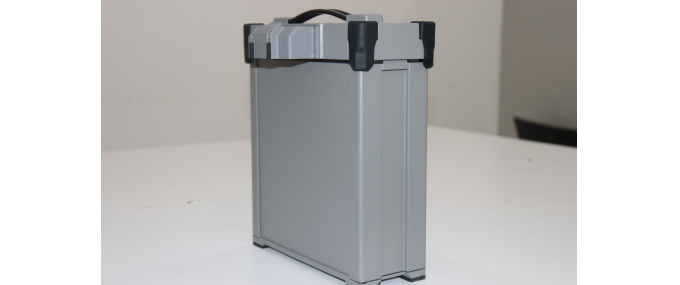

Smart lithium battery with the volume of 23000mAh, easy to operate and fix up. One battery can be used about 1000 times.

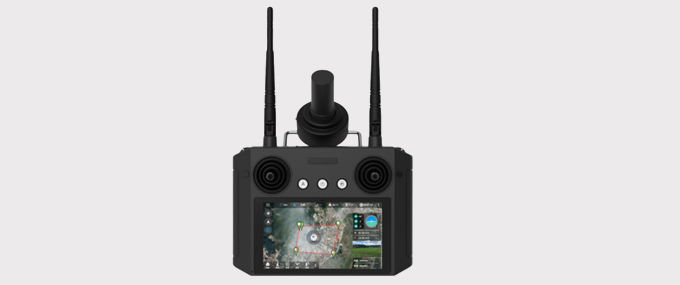

Integrated Remote Controller ,you can operate the drone easily.
Related products

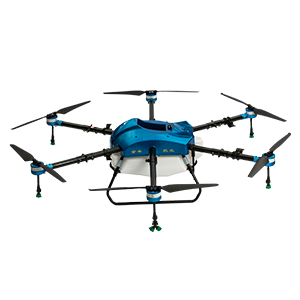

Free eagle DP
(18L)
3WQF Free Eagle DP
MORE
QFTP-22
(22L)
QFTP-22
MORE
QF TP-50
(50L)
QF TP-50
MORE

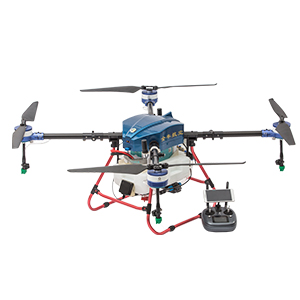

3WQF Free eagle
