(10L)

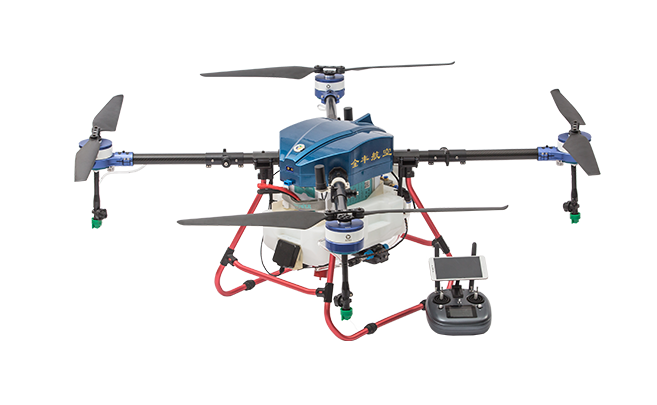

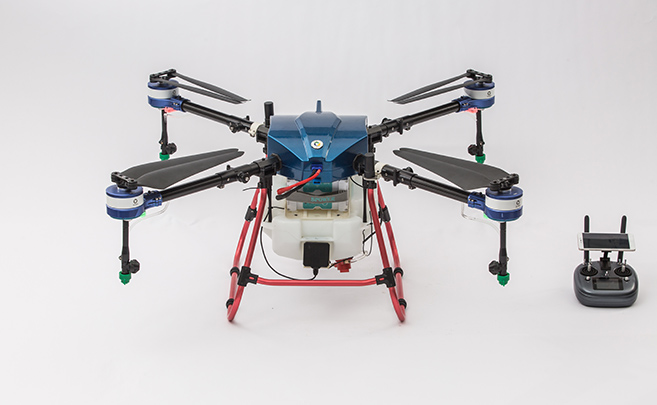

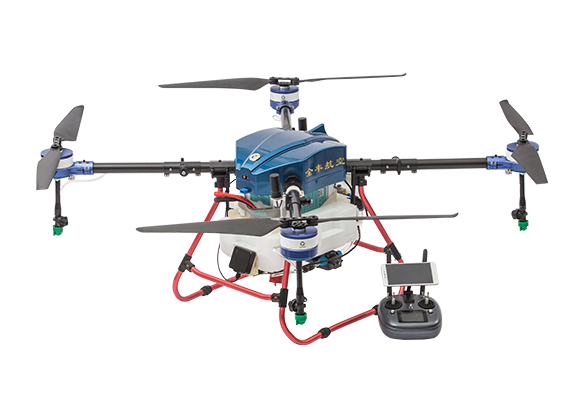

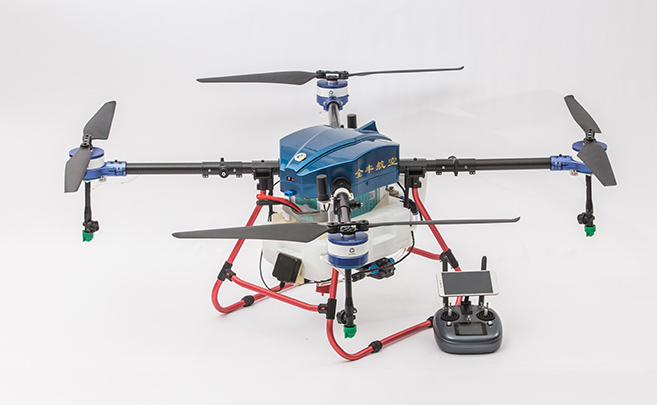

3WQF Free Eagle ZP

The 3WQF Free Eagle ZP(10L) electric drone is the main model of our company, which has the characteristics of long endurance, high efficiency, easy operation, convenient maintenance, good anti-collision performance, good cost performance and has won the favor of the customer.
4 core CPU with excellent performance, so the DP drone has a strong "core".
Triple redundant IMU, double redundant barometer, in case single hardware break, the drone can still work.
3WQF Free Eagle ZP(10L) introduction
The 3WQF Free Eagle ZP(10L) electric drone is the main model of our company, which has the characteristics of long endurance, high efficiency, easy operation, convenient maintenance, good anti-collision performance, good cost performance and has won the favor of the customer.
The Main Parameter
The loading weight: 26KG
Dimension: 1370mm*1370mm*640mm
Tank Volume: 10L
Spray Width: 3.5-4.5m
Spraying efficiency: 8-10acres/hour
Wheelbase: 1280mm
Endurance Time: 15min
Spray Height: 1-3m
Spray flow: 1.8-4L/min
Updated flight control system , which makes the drone performance excellent:
4 core CPU with excellent performance, so the DP drone has a strong "core".
Triple redundant IMU, double redundant barometer, in case single hardware break, the drone can still work.
Dual shock absorber structure with better seismic resistance, which makes the drone cope with complex vibration environment, even if the frame ages, it will still work stably and reduce the maintenance cost.
The drone is equipped with auto obstacle avoidance radar which assures flight safety:
The DP drone is equipped with millimeter wave radar that has high sensitivity and long detection distance , it can identify obstacles beyond 20 meters, which assure the safe and reliable flight.
Also we equip the drone with FPV camera , you can see the situation around it clearly,that also assures flight safety.
The drone body is made of composite material specially for aviation(carbon fibre and aluminium alloy ), which make the drone more lighter but more strong and durable.
The Streamlined hood, which can reduce wind resistance and energy consumption,lengthen the flying time.
Soft spraying system, it can reduce vibration and extend the life of spraying system .you can also equip different nozzles for different crops and applications

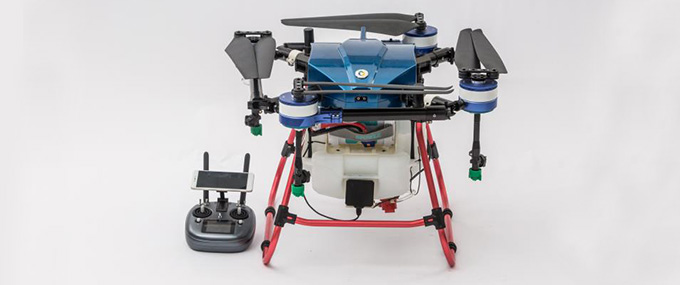

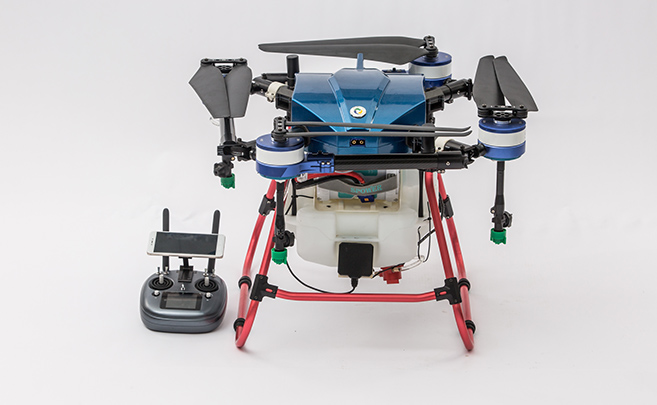

Foldable design, the drone is easy to transport
Smart charger with communication function, the voltage level is 110V-240V, can match with the voltage level of most countries in the world.

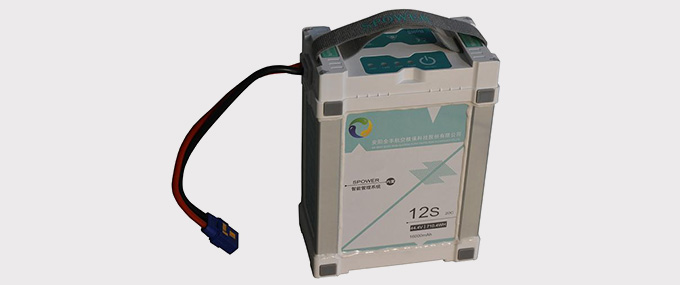

Smart lithium battery with the volume of 16000Mah, easy to operate and maintemance. One battery can be used for 300 times.

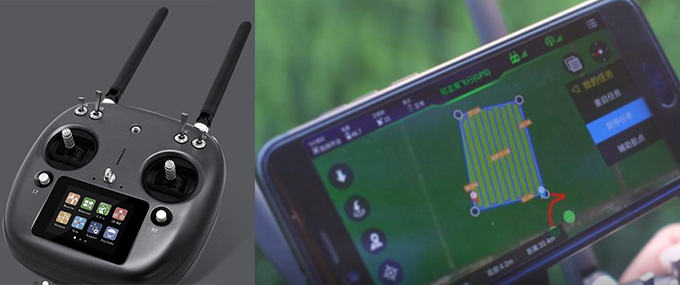

Multi-fuction Intergrated Remote Controler ,you can operate the drone easily.
