Your all-purpose spraying assistant.

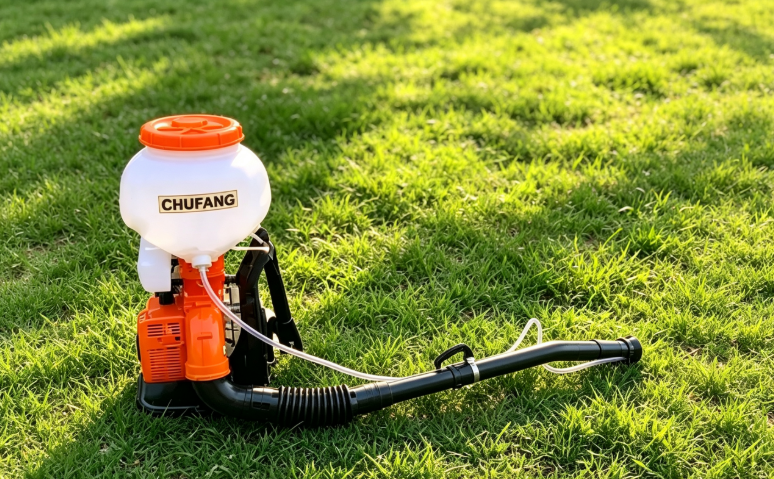

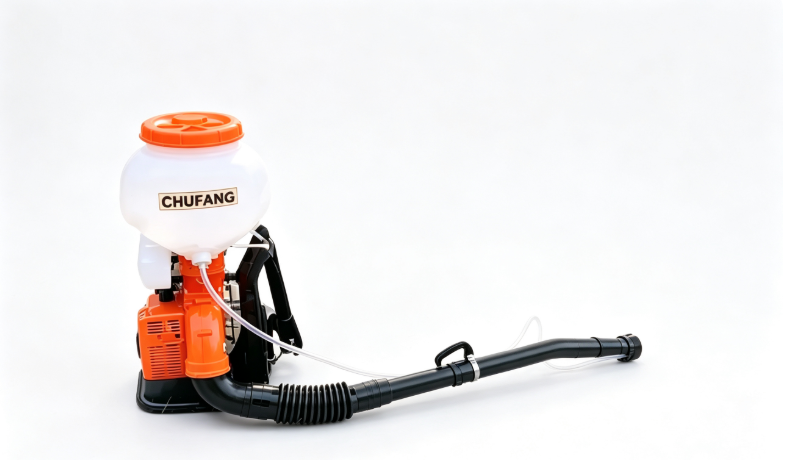

Knapsack Mist Duster / Sprayer( 3CF-3 )

This is a 2-in-1 backpack gasoline mist duster & liquid sprayer branded CHUFANG. It can handle both liquid pesticide spraying and dry powder dusting, widely used in farms, orchards, forest pest control and disinfection. It adopts a lightweight knapsack design for easy long-hour field operation.OEM branding is supported.
Main Parameter
Item Specification
Model 3CF-3
Engine 2-stroke gasoline engine 1E40FP-3Z
Displacement 41.5 cc
Rated Power 2.13 kW @7500 rpm
Medicine Tank Volume 14L / 20L / 26L (optional)
Fuel Tank 1.3 L
Horizontal spraying range ≥12 m
Liquid output ≥4 L/min
Powder output ≥3 kg/min
Starting method Recoil pull start
Net weight ~10.5 kg
Key Features
Dual function: Spray & Dust Two working modes. Spray liquid herbicide/insecticide, or spread dry powder, fertilizer, disinfectant powder. One machine for multiple farm jobs.
Lightweight backpack design Padded adjustable shoulder straps, ergonomic backrest. Reduce fatigue during all-day working on hills, orchards and scattered farmland.
Strong wind power & long spraying distance Powerful airflow delivers mist up to 12 meters, suitable for tall fruit trees and large crop fields. Fine and uniform mist droplets, save pesticides.
Corrosion-resistant PE tank Thick plastic tank, anti-aging and resistant to agricultural chemicals. Easy to clean after use.
OEM available Custom logo and carton packing.

Application

• Fruit tree, rice, wheat, cotton pest & disease control • Orchard & farm weeding • Greenhouse, livestock farm disinfection • Forest pest prevention • Dry powder spreading for crops
